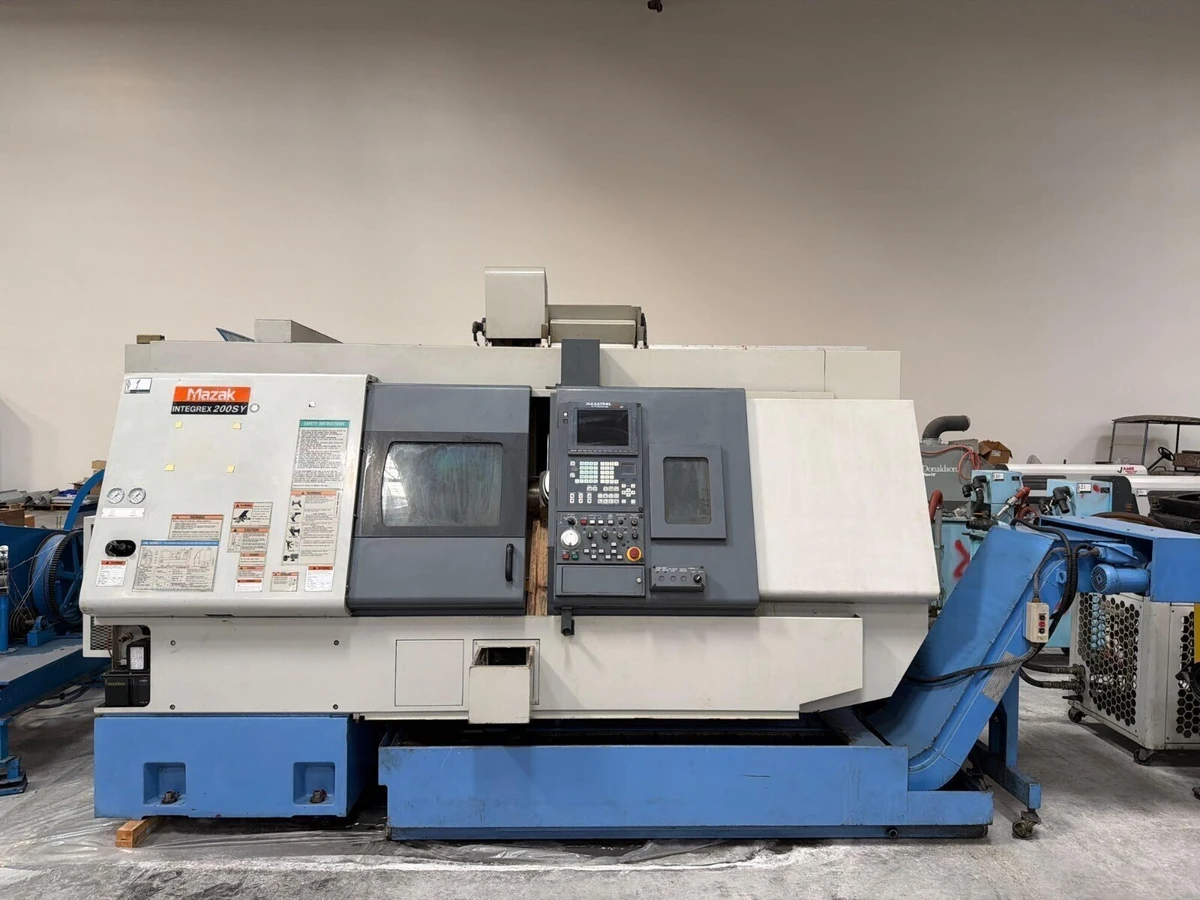

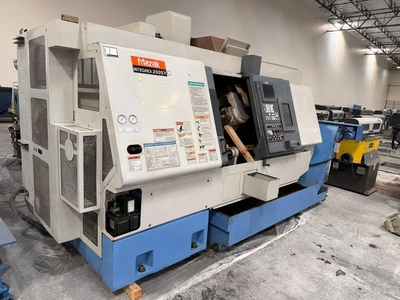

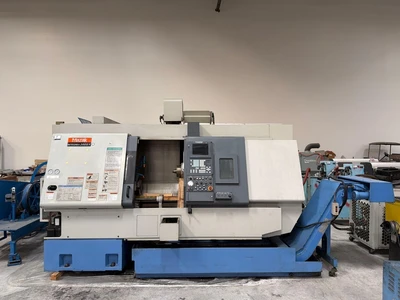

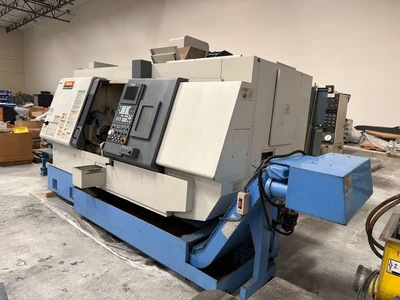

2000 Mazak Integrex 200SY 5-Axis CNC Lathe
Have one to sell?
ConditionUsed
1 available

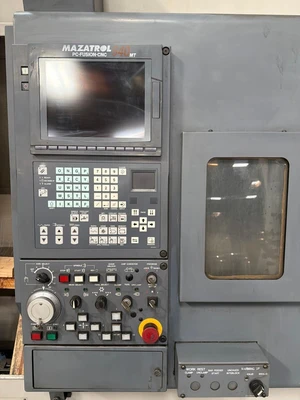

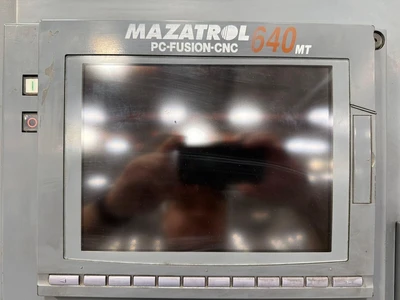

This 2000 Mazak Integrex 200SY mill-turn has a 40-tool ATC, 5.5" of Y-axis travel, and a 5,000 RPM, 10.06 HP sub spindle, run by a Mazatrol Fusion 640MT control. Its 30 HP main spindle reaches 5,000 RPM with 2" bar capacity, 21.25" of swing and turning diameter, and a 40" max turning length.
X-Axis Travel: 20.87"
Y-Axis Travel: 5.5"
Z-Axis Travel: 42"
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Y-Axis: 590 IPM
Rapid Traverse Z-Axis: 1,299 IPM

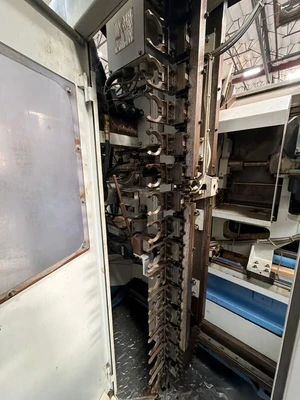

ATC: 40
Spindle Nose: A2-6
Spindle Bore: 2.4"
Sub Spindle Power: 10.06 HP
Sub Spindle Max RPM: 5,000
Approximate Weight: 17,160 lbs

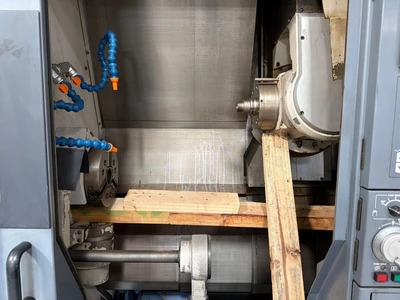

B-Axis Sub
Tool Setter

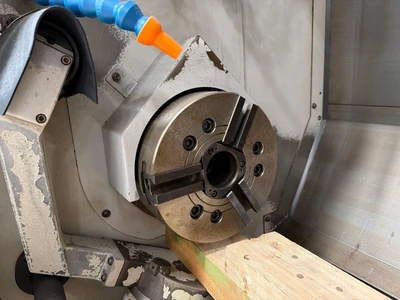

Kitagawa B-208 Hydraulic Chuck

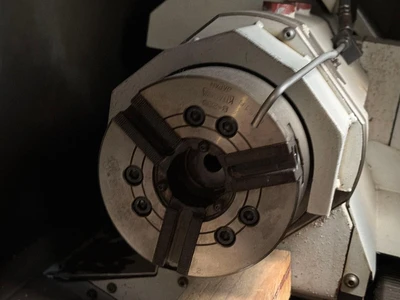

Kitagawa B-206 Hydraulic Chuck
Chip Conveyor
This 2000 Mazak Integrex 200SY mill-turn has a 40-tool ATC, 5.5" of Y-axis travel, and a 5,000 RPM, 10.06 HP sub spindle, run by a Mazatrol Fusion 640MT control. Its 30 HP main spindle reaches 5,000 RPM with 2" bar capacity, 21.25" of swing and turning diameter, and a 40" max turning length.
The Mazak Integrex 200SY, also searched as Integrex 200 SY, Integrex 200-SY, Integrex 200S, and Integrex 200, is a mill-turn turning center with a sub spindle and Y-axis (multitasking lathe).
This 2000 machine has 20.87" of X-axis travel and 42" of Z-axis travel, with rapid rates of 1,181 IPM on X, 590 IPM on Y, and 1,299 IPM on Z, an A2-6 spindle nose, and a 2.4" spindle bore. It comes equipped with a tool setter, Kitagawa B-208 and B-206 hydraulic chucks, and a chip conveyor, with an approximate weight of 17,160 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
X-Axis Travel: 20.87"
Y-Axis Travel: 5.5"
Z-Axis Travel: 42"
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Y-Axis: 590 IPM
Rapid Traverse Z-Axis: 1,299 IPM
ATC: 40
Spindle Nose: A2-6
Spindle Bore: 2.4"
Sub Spindle Power: 10.06 HP
Sub Spindle Max RPM: 5,000
Approximate Weight: 17,160 lbs
B-Axis Sub
Tool Setter
Kitagawa B-208 Hydraulic Chuck
Kitagawa B-206 Hydraulic Chuck
Chip Conveyor
