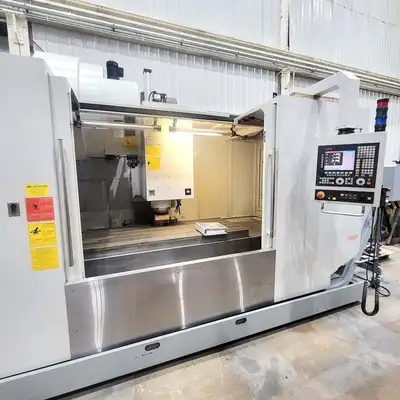

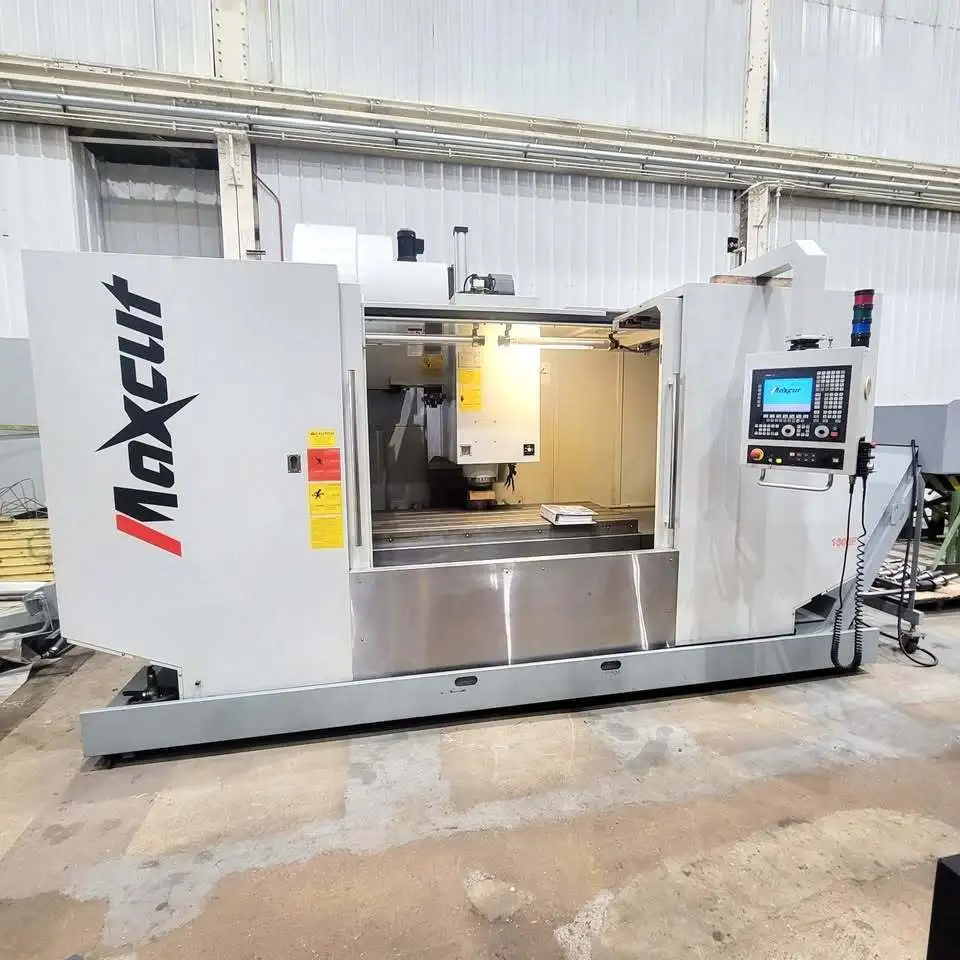

2012 MICROCUT VMC-1600F
Have one to sell?
ConditionUsed
1 available

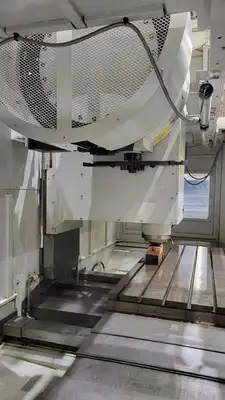

Used Vertical Machining Center. Specs include CAT #50 spindle taper, 34.6 HP, travels: X 62.99", Y 31.49", Z 27.95". Equipped with FAGOR 8055 CNC, auto tool changer, and chip conveyor.
X-AXIS TRAVEL 62.99"
Y-AXIS TRAVEL 31.49"
Z-AXIS TRAVEL 27.95"
SPINDLE NOSE TO TABLE 5.90"-33.07"

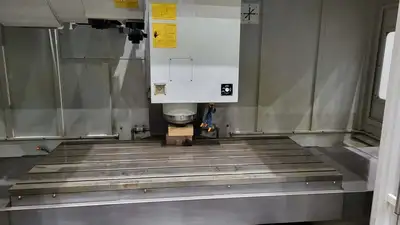

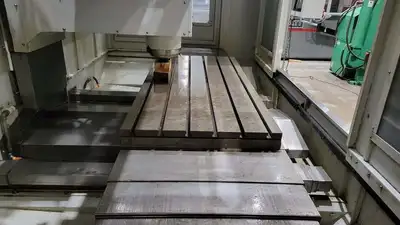

TABLE SIZE 70.86" X 31.49"
TABLE WEIGHT CAPACITY 4,400 LBS.
SPINDLE SPEEDS 6,000 RPM
FEED RATE RATE (X/Y/Z) 944.88 IPM - 944.88 IPM
SPINDLE TAPER CAT #50
SPINDLE DRIVE MOTOR 34.6 HP / 24.6 HP
MACHINE DIMENSIONS (W/ CHIP CONVEYOR) . 213" X 126" X 120"
MACHINE WEIGHT 24,200 LBS.

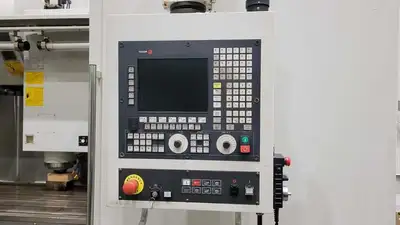

FAGOR 8055 CNC CONTROL
BOX WAYS
RIGID TAPPING
24-POSITION AUTOMATIC TOOL CHANGER
AUTOMATIC LUBRICATION SYSTEM
FULLY ENCLOSURE SPLASH GUARD WITH INTERLOCK DEVICE
TELESCOPING COVERS FOR X & Y AXIS
RIGID TAPPING
PORTABLE MPG
CHIP CONVEYOR

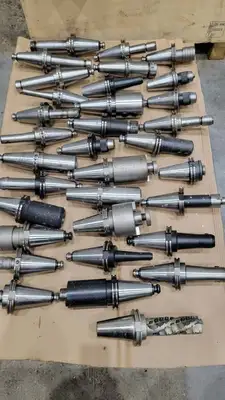

MISC. TOOLING
