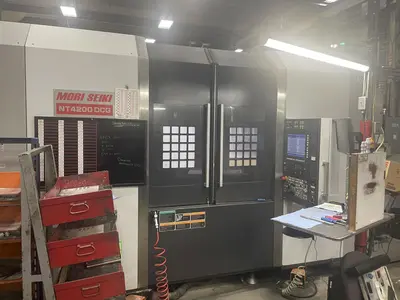

2006 MORI SEIKI NT-4200/1000SZ

# Axis 9
Swing 28.7"
Turning Diameter 25.9"
Turning Diameter Lower Turret 13.7"
Center Distance 42.5"
Bar Capacity 2.5"
X Axis Travel 29.5"
X2 Axis Travel 7.7"
Y Axis Travel 8.3"
Z Axis Travel 44.1"
Z2 Axis Travel 39.8"
B Axis Indexing +/- 120°
C1/C2 Axis Index 0.0001°

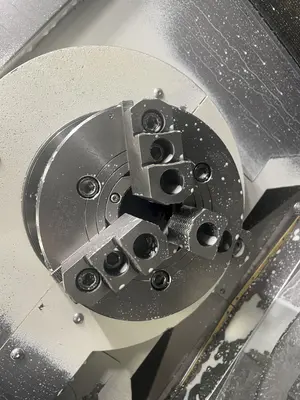

Spindle Nose A2-6
Spindle Speed 5,000 rpm
Main Motor 30 hp

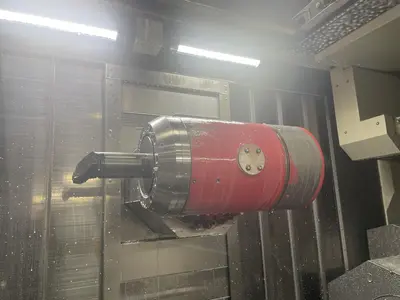

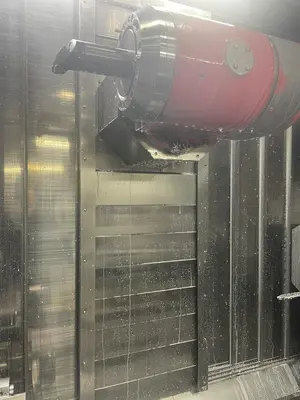

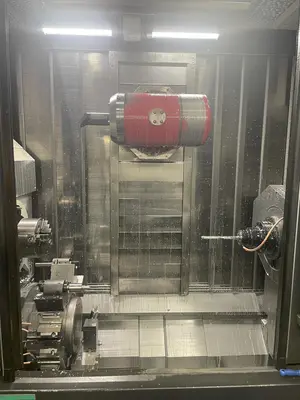

Milling Spindle Taper KM-63
Live Tooling Speed 12,000 rpm - Milling Spindle
Live Tooling Motor 25 hp

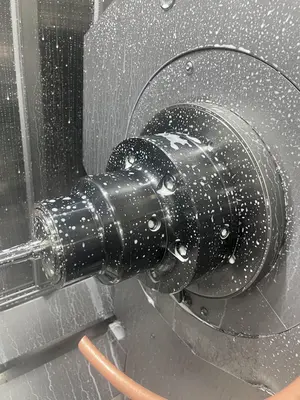

Sub Spindle Bar Capacity 2.5"
Sub Spindle Nose A2-6
Sub Spindle Speed 5,000 rpm
Sub Spindle Motor (HP) 30 hp

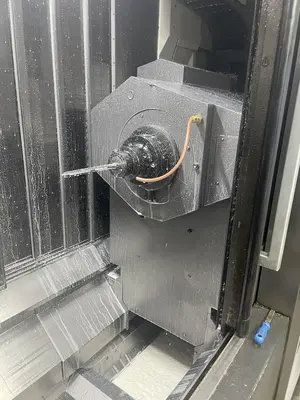

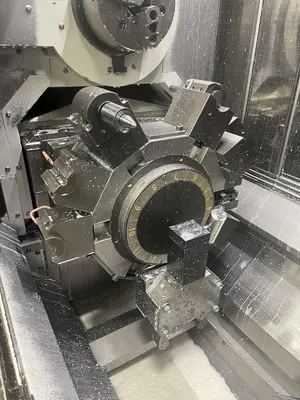

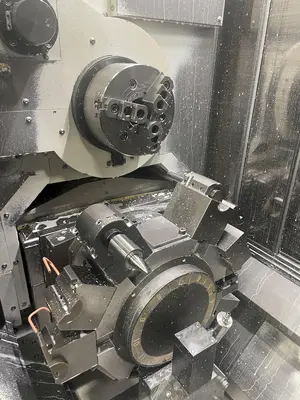

Turret Capacity 12 Stations Lower Turret

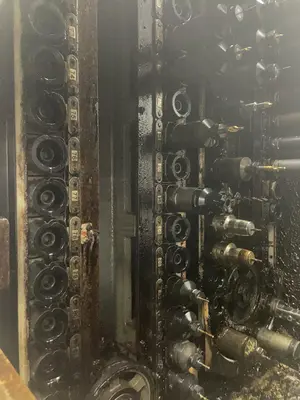

ATC Capacity 100 Stations
Machine Weight 49,700 pounds
